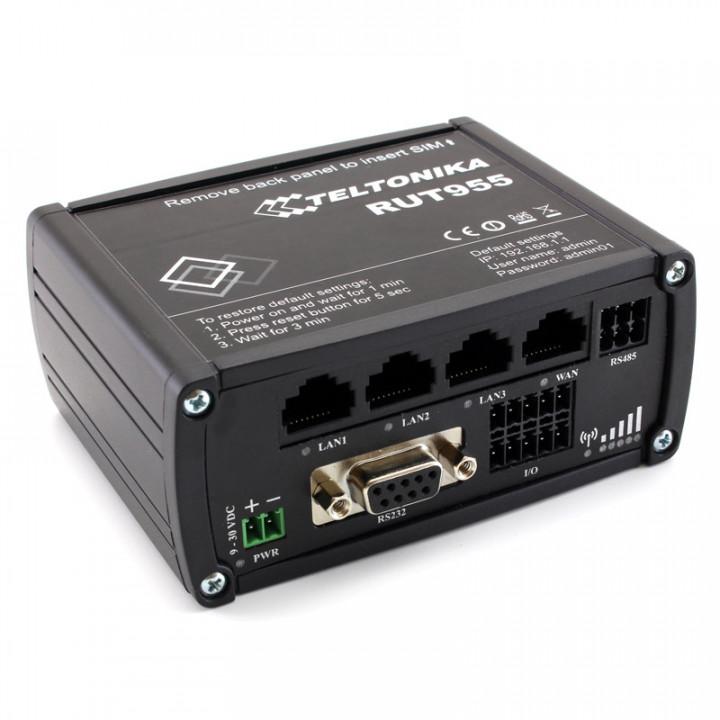

Професійний Маршрутизатор Teltonika RUT955
Роутер RUT955 - високонадійний і безпечний LTE маршрутизатор для професійних додатків.
Ціна вказана з ПДВ.
Маршрутизатор забезпечує високу продуктивність, критично важливу стільниковий зв'язок, можливість визначення місця розташування по GPS.
RUT955 оснащений можливістю відновлення з'єднання при відмові однієї SIM-карти.
Зовнішні антени дозволяють легко знайти найкраще місце розташування для досягнення максимально сильного сигналу.

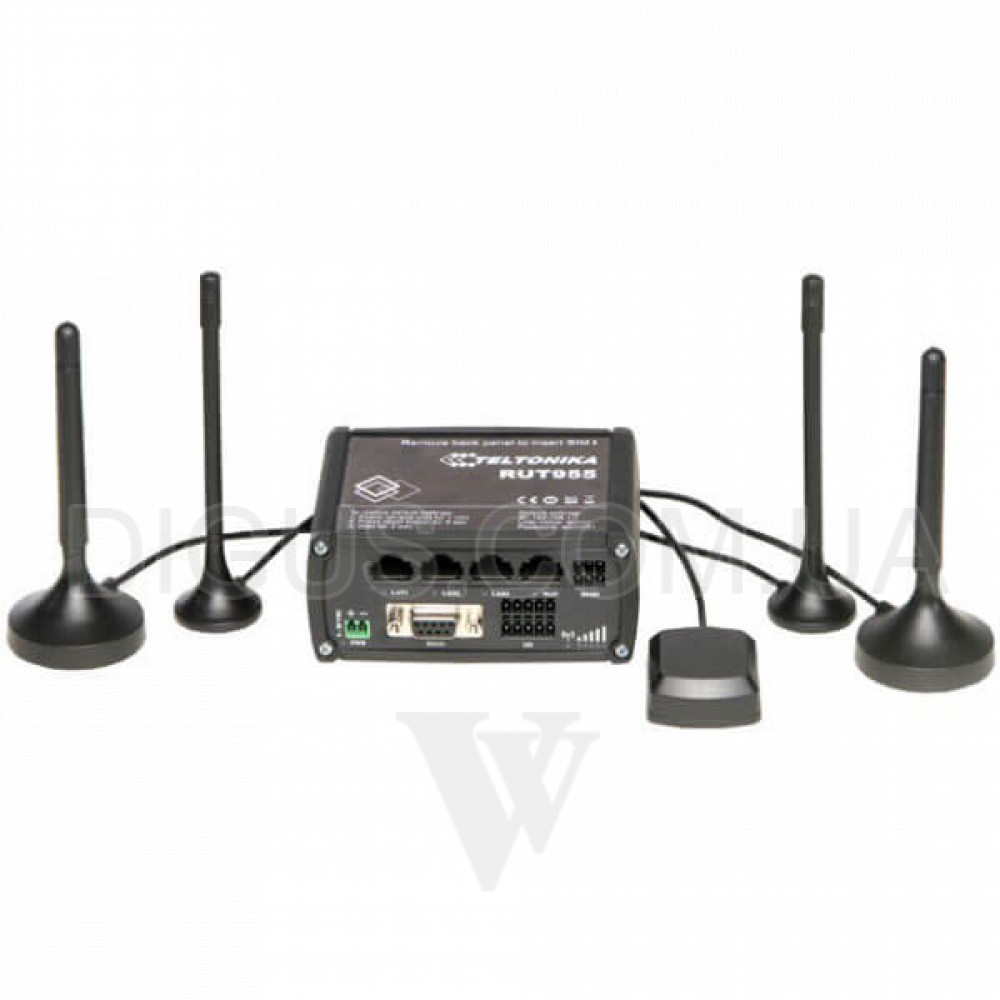

Стандартний пакет містить
маршрутизатор RUT955
євро БП
2 антени LTE
2 x WiFi антени
Кабель Ethernet (1,5 м)
GNSS антена (3м)
QSG (Короткий посібник)
пакувальна коробка
пакет rut950
ТЕХНОЛОГІЇ
4G (LTE) - CAT 4 до 150 Мбіт / с
3G - до 42 Мбіт / с
2G - до 236,8 кбіт / с
WiFi - до 300 Мбіт / с
GPRS
Ethernet - 4 порту
смс
Апаратне забезпечення
1x SIM-карта
2x SIM-карта (Dual-SIM)
3 порти LAN 10/100 Мбіт / с Ethernet
1x WAN 10 / 100Mbps Ethernet-порти
Стандарти Wi-Fi IEEE 802.11b / g / n
Міцний алюмінієвий корпус
2-контактний промисловий роз'єм живлення постійного струму
Power over Ethernet (не сумісний з IEEE 802.3af - 2003)
Тип мобільної антени - 2 x SMA
Тип антени WiFi - 2 x RP-SMA
Діапазон вхідної напруги - 9-30 В постійного струму
Діапазон робочих температур - від -45ºC до 80º C
Діапазон температур зберігання - від -45º до 80º C
Споживана потужність - <7 Вт
Варіанти монтажу - DIN-рейка, стіна
Індикація - 1x двокольорове з'єднання, 5-кратне з'єднання, 4-кратне стан LAN, 1x Power
MOBILE
Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps. SIM switch 2
SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, RSRPO, RSRQ, Bytes sent/received
Bridge Direct connection (bridge) between mobile ISP and device on LAN
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list Operator black/white list
Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services
WIRELESS
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
WiFi security WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
SSID SSID stealth mode and access control based on MAC address
WiFi users up to 100 simultiniuos connections
Hotspot Captive portal (Hotspot), internal/external Radius server , built in customizable landing page
ETHERNET
WAN 1 x WAN (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP alocation
QoS Traffic priority quening by source/destination, service, protocol or port
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired and Wi-Fi WAN options, each of which can be used as backup
Load balancing Balance your internet traffic over multiple WAN connections
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY Authetication Pre-shared key, digital certificates, X.509 certificates Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Atack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) WiFi security WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation VLAN Port based and tag based VLAN separation Mobile quota control Set up custom data limits for both SIM cards WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter VPN OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels, with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) GRE GRE tunnel PPTP, L2TP Client/Server services can run simultaneously MONITORING & MANAGEMENT WEB UI HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log FOTA Firmware update from server, automatic notification. SSH SSH (v1, v2) SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems MQTT MQTT Broker, MQTT publisher SNMP SNMP (v1, v2, v3), SNMP trap JSON-RPC Management API over HTTP/HTTPS MODBUS MODBUS TCP status/control RMS Teltonika Remote Management System (RMS) SYSTEM CHARACTERISTICS CPU Atheros Wasp, MIPS 74Kc, 550MHz RAM 128MB, DDR2 FLASH memory 16MB SPI Flash FIRMWARE / CONFIGURATION WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point FOTA Update FW/configuration from server RMS Update FW/configuration for multiple devices Keep settings Update FW without loosing current configuration FIRMWARE CUSTOMIZATION Operating system RutOS powered by Linux based on OpenWRT Supported languages Busybox shell, Lua, C, C++ Development tools GPL package with built environment provided LOCATION TRACKING GNSS GPS, GLONASS Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS NMEA NMEA 0183 NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol) Server software supported server software TAVL, RMS Mobile Network Geolocation Location without using GPS, get approximate location based on mobile tower on RMS SERIAL RS232 DB9 connector, full RS232 (with RTS,CTS) RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate Serial functions Console, Serial over IP, Modem, Modbus gateway, NTRIP Client INPUT/OUTPUT Input 3 x Input (0 - 3 V digital input / 0 - 30 V digital galvanically isolated input / 0 - 24 V analog input) Output 2 x Output (30 V, 250 mA digital open collector output / 40 V, 4 A SPST relay output) Events SMS, EMAIL, RMS USB Data rate USB 2.0 Applications Samba share, custom scripts External devices Possibility to connect external HDD, flash drive, additional modem SD CARD Physical size Micro SD Aplications Samba share, custom scripts Capacity Up to 32GB POWER Connector 2 pin industrial DC power socket Input voltage range 9 – 30 VDC (2 pin industrial socket, 5mm pin pitch), reverse polarity protection, voltage surge/transient protection PoE (passive) Passive PoE over spare pairs. Posibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards Power consumption < 2W idle, < 7W Max.

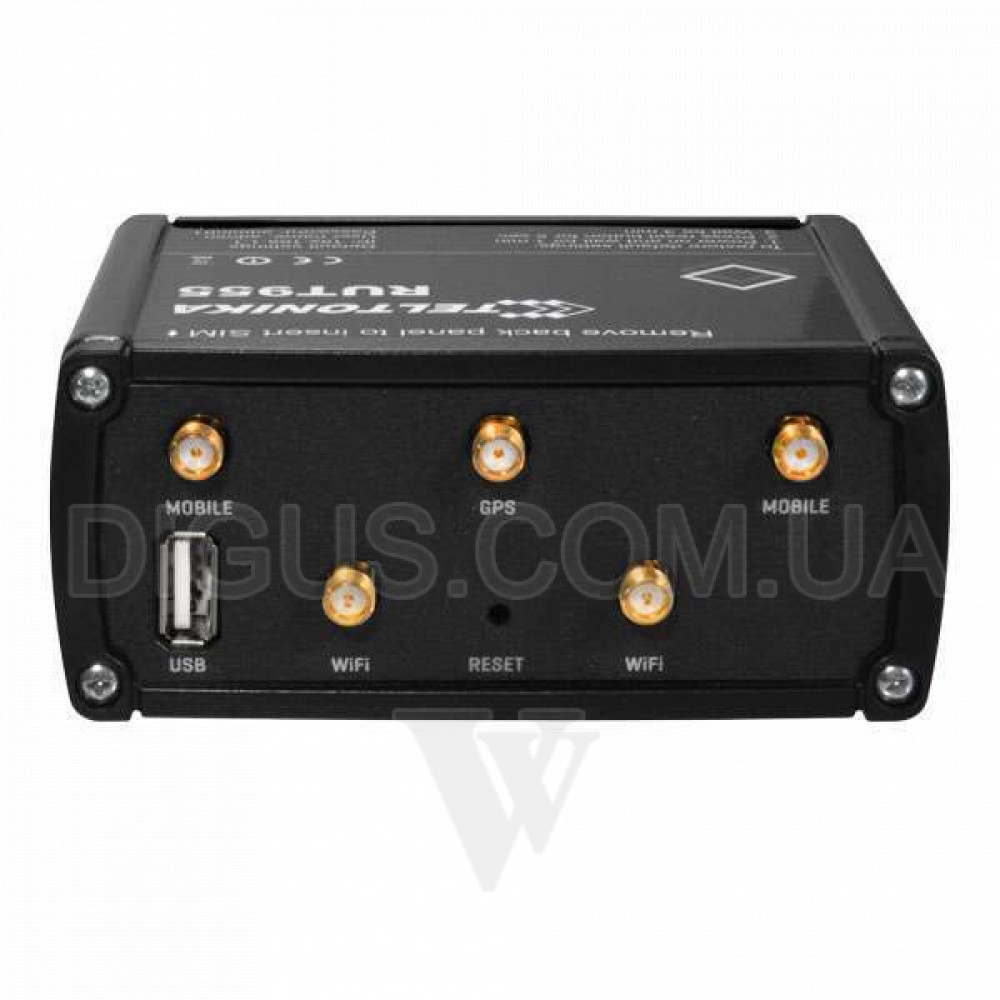

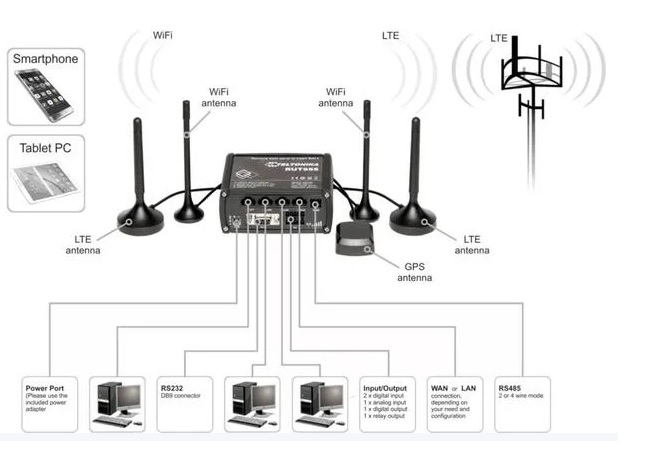

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) Ethernet 4 x RJ45 ports, 10/100 Mbps Status LEDs 1 x bi-color connection status LED, 5x connection strength LEDs, 4x LAN status LEDs, 1x Power LED SIM 2 x SIM slots (Mini SIM - 2FF, 2st form factor), 1.8V/3V Power 2 pin industrial DC power socket Input/output 10 pin industrial socket for inputs/outputs: Anntenas 2 x SMA for LTE, 1 x SMA for GNNS, 2 x RP-SMA for WiFi antenna connectors USB USB A socket for external devices SD card Micro SD card slot RS232 DB9 socket for full-featured RS232 RS485 6 pin industrial socket for 2/4 wire RS485 Reset Reset/restore to default button PHYSICAL SPECIFICATION Casing material Aluminium housing, plastic panels Dimensions 80 mm x 106 mm x 46 mm (H x W x D) Weight 280 g Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
MTBF 270000 h
